ALVECOMP - ROOF

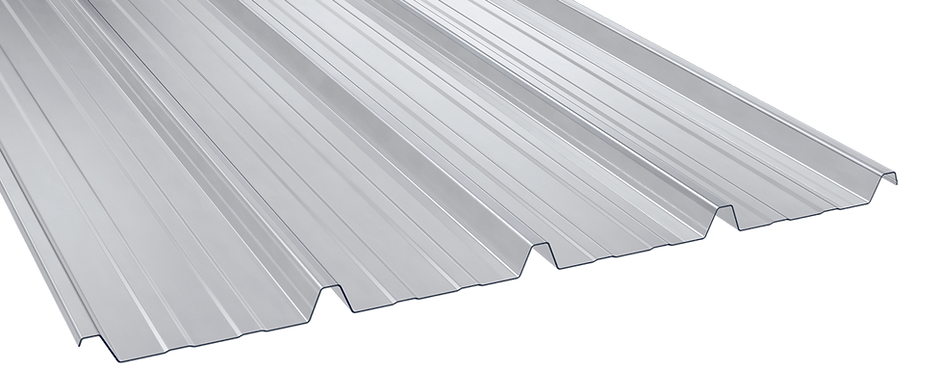

RIBBED SHEETS IN POLYCARBONATE

IT IS A TRANSLUCENT COVERING ELEMENT IN COMPACT POLYCARBONATE, PRODUCED FOR ALL
SECTIONS OF POLYURETHANE PANELS AND RIBBED SHEETS ON THE MARKET. THE PARTICULAR GEOMETRY GIVES THE PRODUCT HIGH FLEXIBILITY OF APPLICATION, BOTH AS AN INTRA-PITCH SKYLIGHT, AS A SKYLIGHT FROM RIDGE TO EAVES, AND AS A COMPLETELY TRANSPARENT ROOF.

11 available sections:

TECHNICAL SPECIFICATIONS

TRANSLUCENT ROOF IN COMPACT POLYCARBONATE, UV-PROTECTED, CO-EXTRUDED ON THE OUTER SIDE, VARIABLE THICKNESS
OF 1/2 MM, CRYSTAL OR OPAL COLOR.
DIMENSIONS: MODULE WITH VARIABLE WIDTH 1,000/1,240 MM, LENGTH CUT TO SIZE

REQUEST LOAD TECHNICAL DATA SHEET FOR EACH PRODUCT

ALVECOMP-ROOF SHEETS MUST BE FASTENED IN CORRESPONDENCE OF THE STRUCTURES ON EACH UPPER PORTION OF THE RIB,
WITH Ø 6.3 MM SCREWS, EQUIPPED OF THE PROVIDED GASKETS. THE USE OF OTHER TYPES OF FASTENERS CAN ALTER THE SHEET
RESISTANCE. FOR FASTENING, IT IS RECOMMENDED PRE-DRILLING WITH A METAL DRILL BIT WITH A DIAMETER 2 MM BIGGER THAN
THAT OF THE SCREW. OVER TIGHTENING OF THE FASTENING ELEMENTS PREVENTS THE MOVEMENT OF THE SHEETS DUE TO THERMAL
EXPANSION, COMPROMISING THEIR INTEGRITY.

The products that make up our range, officially presented in the following pages, are realized thanks to cutting-edge technologies and in the absolute respect for the environment, in the name of eco-sustainability.
